Wenzhou Changhong Printing Machinery Co., Ltd. is one of the leading manufacturers and suppliers of 4 color ci flexo printing machine in China. Welcome to buy cheap 4 color ci flexo printing machine for sale here from our factory. Quality products and reasonable price are available.
4 color CI Flexo printing machine is a printing press used to print high-quality graphics, images and text on flexible materials such as plastic films, paper, and foil. The CI (Central Impression)configuration of the machine refers to its cylindrical design, where the printing plates are mounted on a central cylinder and the film moves around it. This ensures precise registration and consistent print quality. Flexo printing is commonly used for packaging materials such as food and beverage packaging, labels, and bags.
Parameter
|
TECHNICAL SPECIFICATIONS |
||||
|
Model |
CHCI4-600E-S |
CHCI4-800E-S |
CHCI4-1000E-S |
CHCI4-1200E-S |
|
Max. Web Width |
700mm |
900mm |
1100mm |
1300mm |
|
Max. Printing Width |
600mm |
800mm |
1000mm |
1200mm |
|
Max. Machine Speed |
350m/min |
|||
|
Max. Printing Speed |
300m/min |
|||
|
Max. Unwind/Rewind Dia. |
Φ800mm/Φ1000mm/Φ1200mm |
|||
|
Drive Type |
Central drum with Gear drive |
|||
|
Photopolymer Plate |
To be specified |
|||
|
Ink |
Water base ink or solvent ink |
|||
|
Printing Length (repeat) |
350mm-900mm |
|||
|
Range Of Substrates |
LDPE, LLDPE, HDPE, BOPP, CPP, PET, Nylon, |
|||
|
Electrical Supply |
Voltage 380V. 50 HZ.3PH or to be specified |
|||
Video Introduction
Machine Features
The CI Flexo press is a flexible packaging printing press designed to deliver high quality, Some of its features are:
1. Servo-driven technology - This feature enables precise and accurate registration control, making the printing process more reliable and efficient.
2. Drying system - The 4 color ci flexo printing machine uses a drying system that has options for hot air or infrared drying to ensure the printed material is dried and ready for the next step of the production process.
3. Automatic ink supply - The press has an automatic ink supply system that eliminates the need for manual ink refilling, which increases productivity and minimizes ink waste.

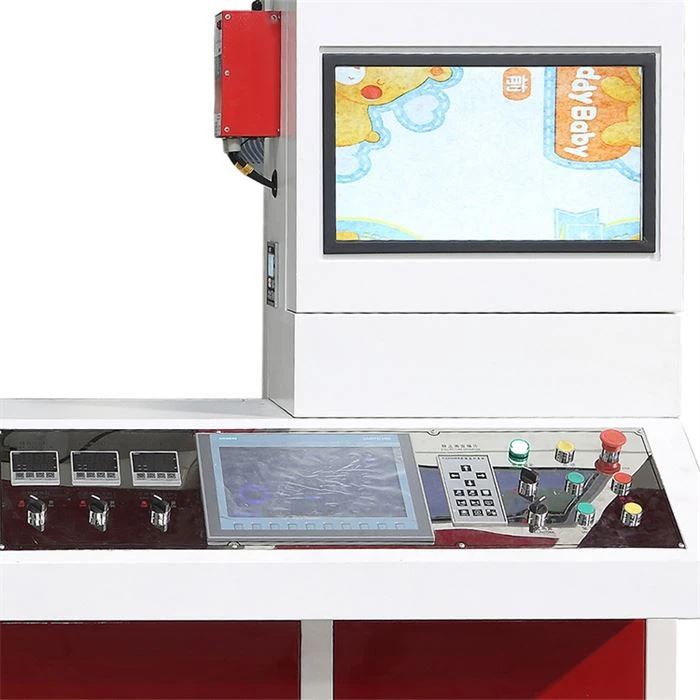

4. Control system - The press has a user-friendly control system that enables operators to set and monitor press parameters such as printing speed, registration, tension, and ink viscosity.
5. Quick-change features - The CI Flexo machine has quick-change features that allow operators to change print cylinders, anilox rolls, and ink chambers easily and quickly.

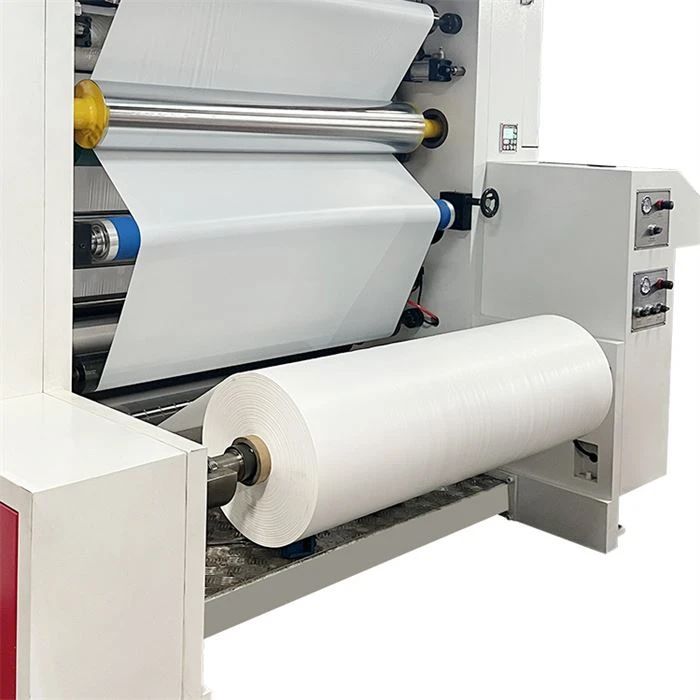

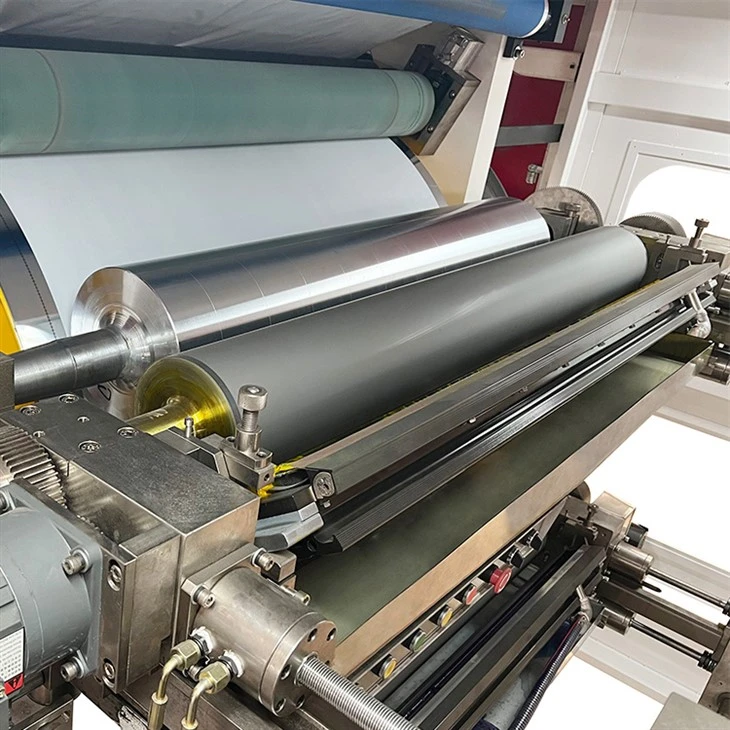

Detail Image
Printing samples
FAQ
Q1: What is 4 color CI flexo printing machine?
A1: 4 color CI flexo printing machine is a type of printing press that uses flexible printing plates to print on various flexible substrates such as films, labels, paper . It has four printing stations, each of which can apply a different color ink, allowing for multicolor printing in a single pass.
Q2: What is the printing speed of a 4 Colour CI flexo printing machine?
A2: The printing speed of a 4 Colour CI flexo printing machine varies depending on the machine model, substrate type, and ink type used. However, most models can print at an average speed of up to 300 meters per minute.
Q3: What are the advantages of a 4 color flexo printing machine?
A3: The advantages of a 4 color flexo printing machine are that it can print a range of colors. which allows for the reproduction of high-quality images and text. The machine is also versatile and can print on a variety of substrates, the machine uses water-based Ink environmental protection making it a popular choice for the flexible packaging industry.
