Ci Flexo Press is also known as Central Drum Flexo Printing Machine. It is the most important model in flexo printing to obtain higher overprint accuracy and more stable performance.Ci Flexo Machine accounts for 70%~80% of all flexo printing machines. The focus of the introduction and production of flexo printing machines will gradually shift from narrow-width unit type to wide-width CI.

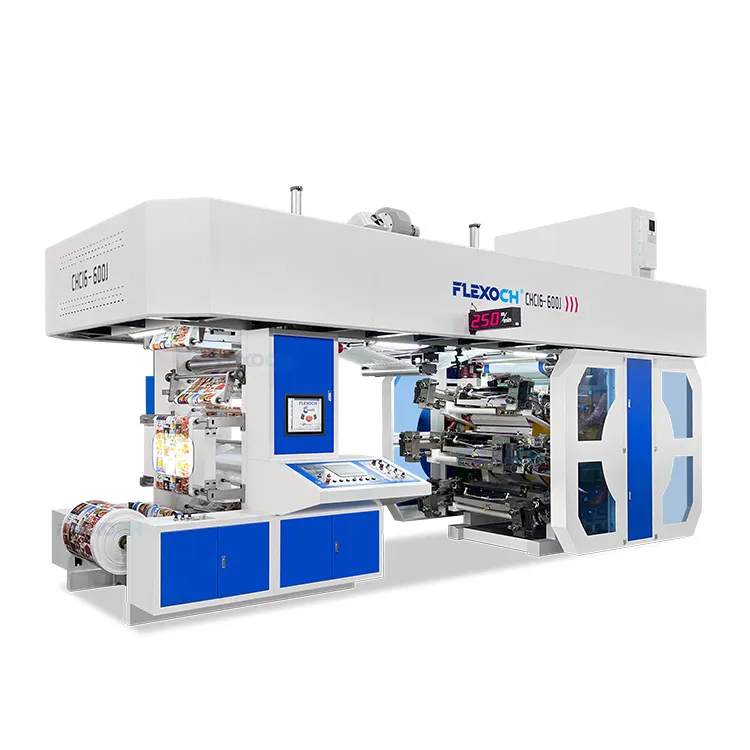

Central-Drum-Flexo-Printing-Machine

Machine parameters

Model	CHCI6-600J-S	CHCI6-800J-S	CHCI6-1000J-S	CHCI6-1200J-S
Max. Web Width	650mm	850mm	1050mm	1250mm
Max. Printing Width	600mm	800mm	1000mm	1200mm
Max. Mechanical Speed	250m/min
Max. Printing Speed	200m/min
Max. Unwind/Rewind Dia.	Φ800mm/Φ1000mm/Φ1200mm
Drive Type	Central drum with Gear drive
Photopolymer Plate	To be specified
Ink	Water base ink or solvent ink
Printing Length (repeat)	350mm-900mm
Range Of Substrates	LDPE, LLDPE, HDPE, BOPP, CPP, PET, Nylon,
Electrical Supply	Voltage 380V. 50 HZ.3PH or to be specified

Video Introduction

The following is the workflow of central drum flexo printing machine.Suitable for paper, aluminum foil, non-woven fabric, plastic material, etc.

Features

1.drum flexo printing machine adapt to a wide range of printing materials.

Since the printing material is tightly wound on the central impression cylinder of the CI Flexo Printing Machine.when adjusting the printing pressure and overprinting functions, it is necessary to adjust the position of the anilox roller and the printing plate. The material is not affected during the printing process, and due to the support of the central impression cylinder, the printed material will not be subject to secondary deformation caused by the machine during the printing process. It can print breathable PE film with a thickness of 15pm, as well as non-woven fabrics and plastics and thicker composite materials.

2. Accurate overprinting and low rejection rate.

During the printing process, as long as the registration adjustment and pressure adjustment of each color group are completed, no other adjustments are required during the entire printing process, and the registration position and pressure of the material during the running process can be consistent with the first finished sample.

3. Flexographic printing with low material surface.

Due to the use of flexographic printing plate, the influence of uneven paper surface on printing can be avoided by adjusting the appropriate printing pressure, and various papers such as coated whiteboard, wood pulp liner, kraft cardboard, white cardboard can be printed.

4. Low ink consumption, low solvent residue and low drying energy consumption.

Flexographic printing uses anilox roller ink transfer printing, which can precisely control the amount of ink to adapt to different printing patterns.

5. Plate making is convenient and fast.

flexo plate making is faster, and generally a set of plates can be easily completed in one day.
