The Wide Web Flexo Press is a revolutionary gearless flexo printing press, designed specifically for modern printing enterprises that pursue ultimate efficiency, outstanding printing quality, and maximized return on investment. It abandons the traditional mechanical gear structure and drives each printing unit through independent servo motors, achieving unparalleled flexibility and precise control.
Parameter
|
Model |
CHCI6-1300F-Z |
| Max. Web Width | 1300mm |
|
Max. Printing Width |
1270mm |
|
Max .Machine Speed |
500m/min |
|
Max. Printing Speed |
450m/min |
|
Max. Unwind/Rewind Dia. |
Φ800mm/Φ1200mm/Φ1500mm |
|
Drive Type |
Gearless full servo drive |
|
Photopolymer Plate |
To be specified |
|
Ink |
Water base ink or solvent ink |
| Printing Length (repeat) |
400mm-800mm |
|
Range Of Substrates |
Non Woven,Paper,Paper Cup |
|
Electrical Supply |
Voltage 380V. 50 HZ.3PH or to be specified |
Video Introduction
The following is the operation flow of wide web flexo press
Machine Features
1. No traditional mechanical gears here-this wide web Flexo press uses a full-servo drive. It delivers ultra-high registration accuracy and stable tension, plus more flexibility: cuts setup time, saves consumables, and guarantees top print quality and cost savings.
2. The wide web Flexo Press runs steady at up to 500m/min for fast production turnaround. Comes with a user-friendly smart control system-operators can easily set and adjust all print parameters, cutting operational complexity for seamless high-speed runs.
3. Has an efficient UV curing system-ink cures fast and evenly for bright, long-lasting prints. Built with energy savings in mind: uses less power, slashes long-term operating costs. Perfect for balancing performance and sustainability.
4.The gearless ci Flexo machine has all steps (unwinding, rewinding, paper feed/delivery) are servo-controlled-keeps material tension steady even at high speed. Supports high-precision printing, and handles all substrates from film to cardboard for varied production needs.
5.Handles a wide range of substrates-including films, cardboards, aluminum foils, and non-wovens-no frequent parameter tweaks needed. Its stable tension control ensures consistent print quality across thin, thick, or textured materials, fitting diverse packaging and printing orders.

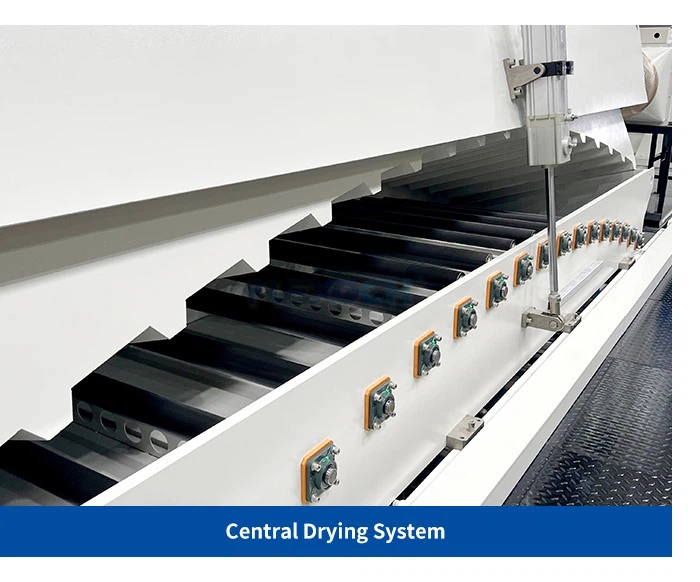

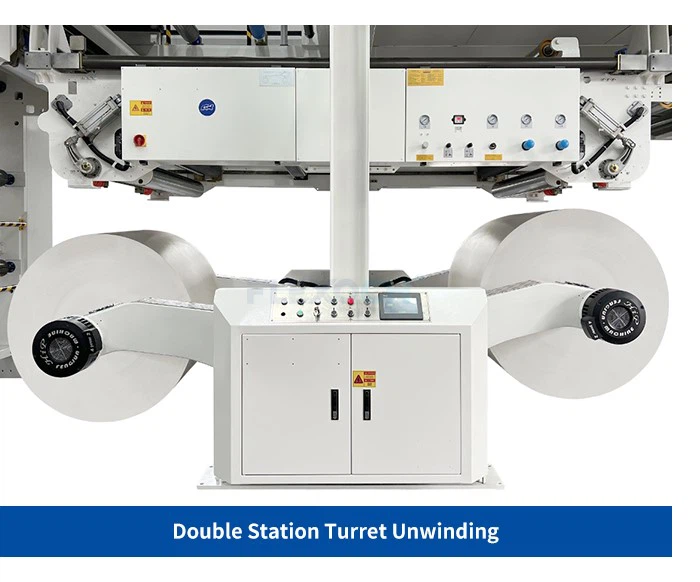

Detail Image
Printing Sample

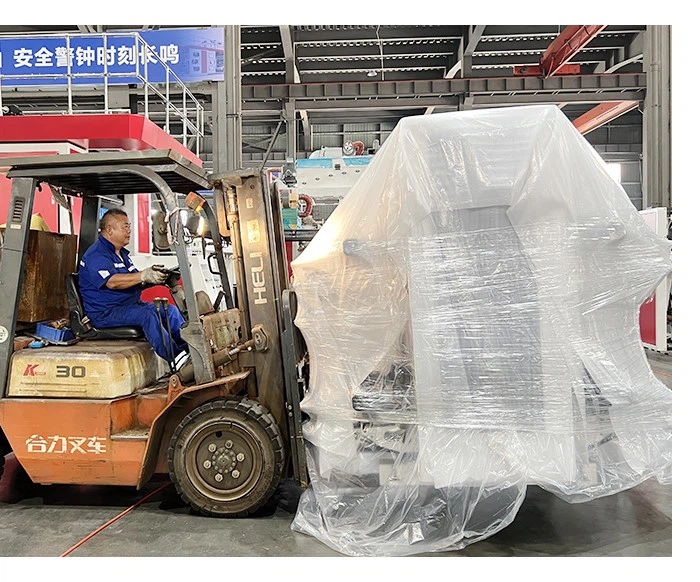

Packaging and Delivery
We use custom heavy-duty packaging: shock-absorbing foam lined with reinforced steel crates to shield the press from transit damage. Partner with trusted logistics providers for on-time delivery, plus real-time GPS tracking to let you monitor your equipment's location.
