As sustainability requirements and global plastic reduction policies continue to expand, paper packaging is becoming an increasingly important solution in the flexible packaging industry. Different paper substrates present challenges such as high ink absorption, moisture sensitivity, surface roughness and registration instability during high-speed flexographic printing production.
Changhong flexo printing machine provides tailored paper printing solutions for various packaging applications, helping manufacturers achieve stable printing quality, efficient production performance for paper packaging printing applications and reliable material adaptability across different paper structures and converting processes.

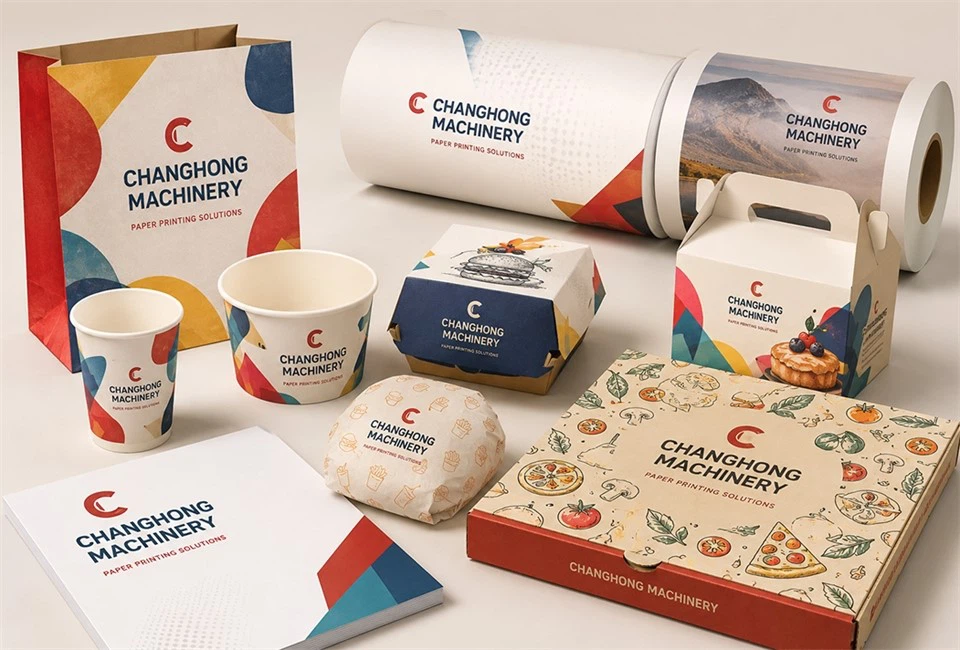

Paper Flexo Printing Solutions
Changhong flexo printing solutions work with paper substrates ranging from 12 to 400 gsm, and keep stable performance in all kinds of packaging application scenarios.

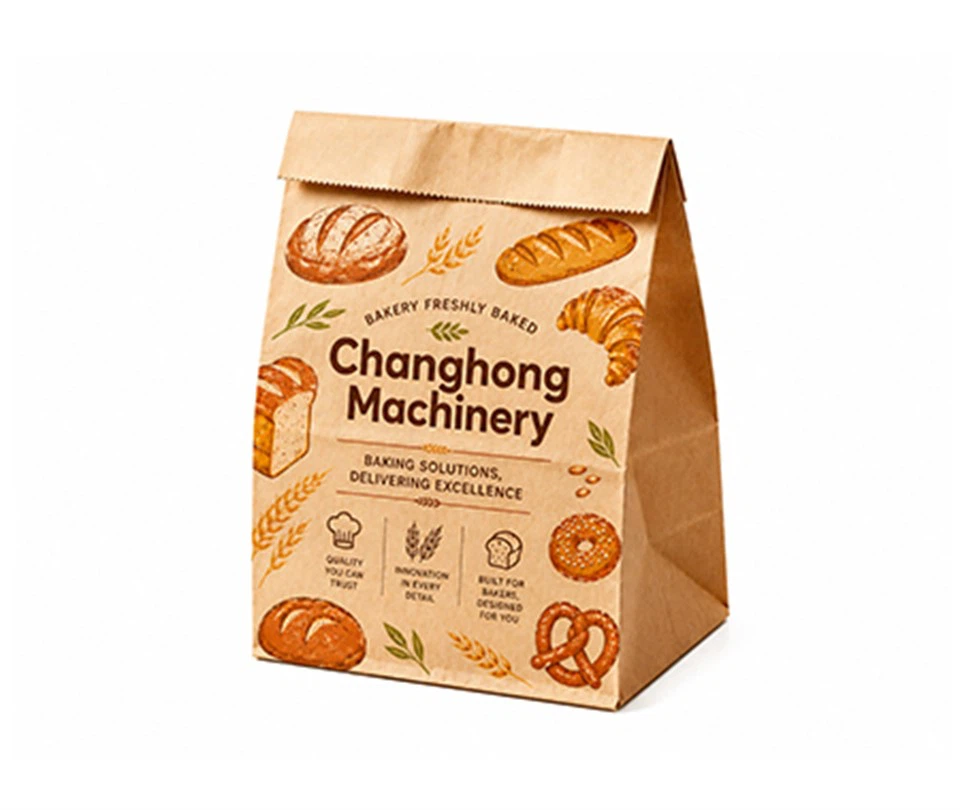

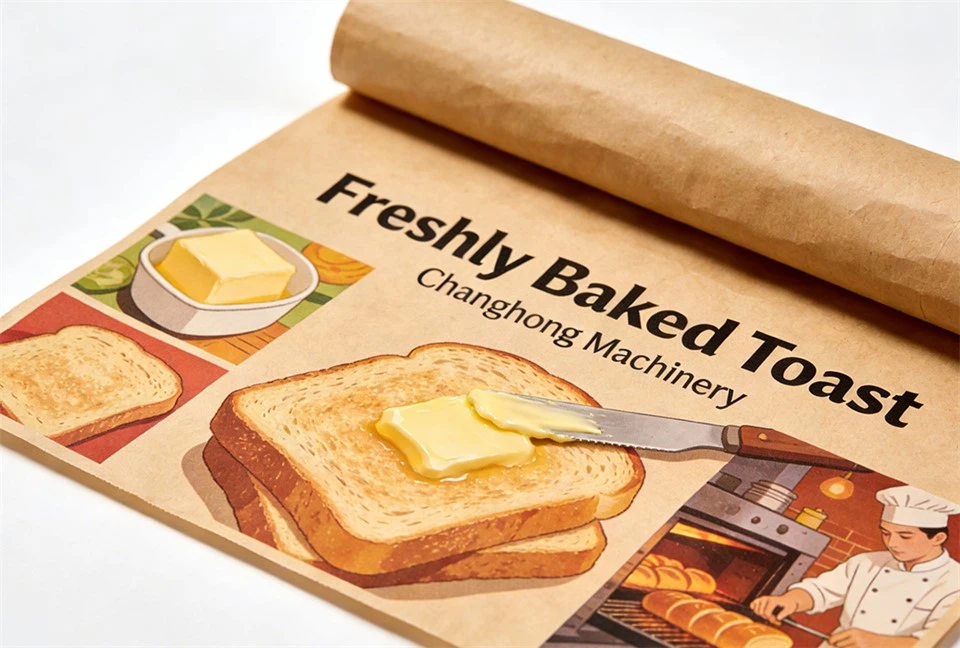

Kraft Paper
Great for eco-friendly packaging bags, food packs and industrial packaging. It's tough enough and has really solid load-bearing ability.
White Cardboard
Best for high-end packaging, labels and paper box printing. Its smooth surface does a great job showing fine patterns and bright colors.
Coated Paper
It has great surface gloss and shows ink really well, so it's widely used for food and daily chemical packaging.
PE Coated Paper

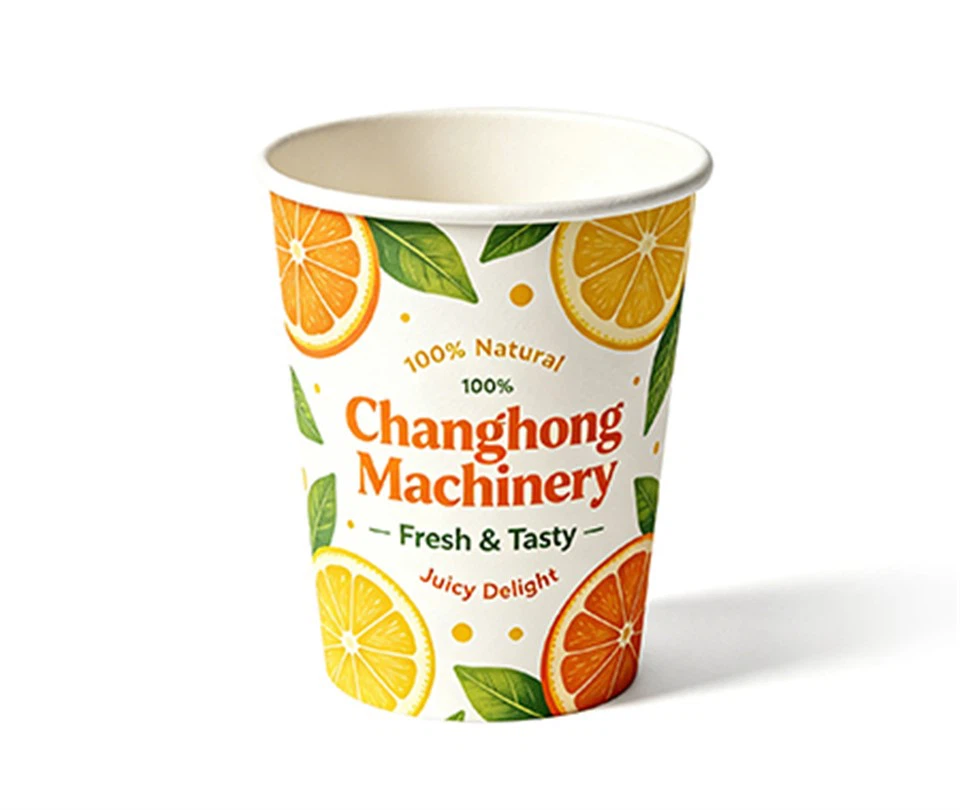

Good for paper cups, food packs and moisture-proof packaging. It's easy to print on and also has reliable waterproof performance.

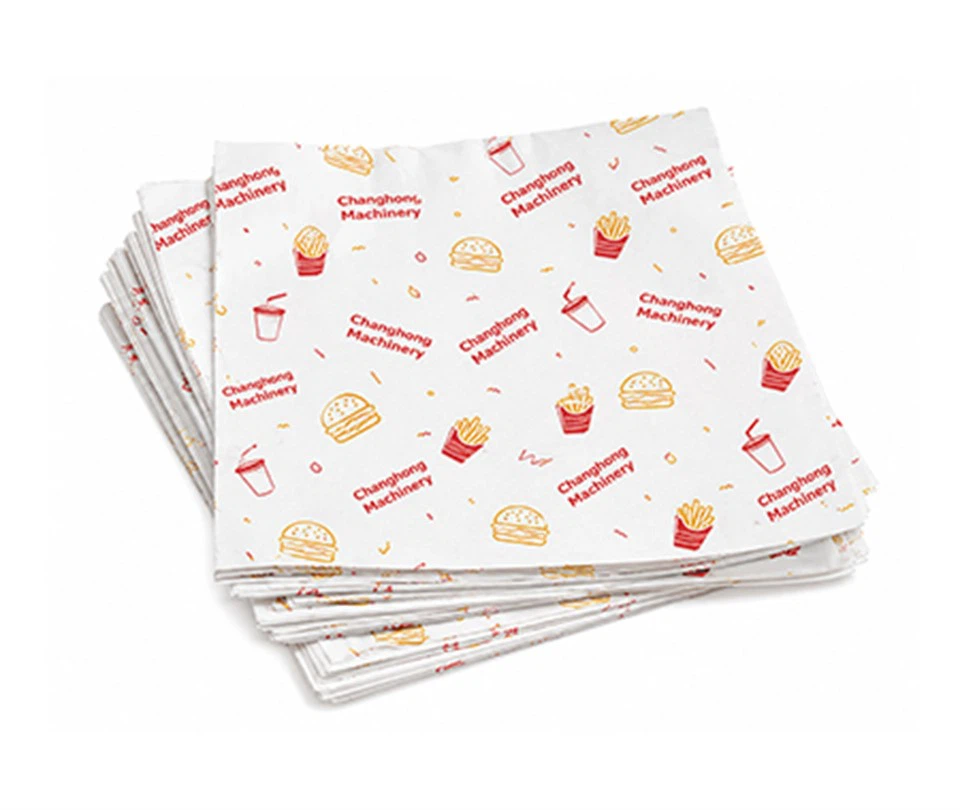

Food Grade Paper

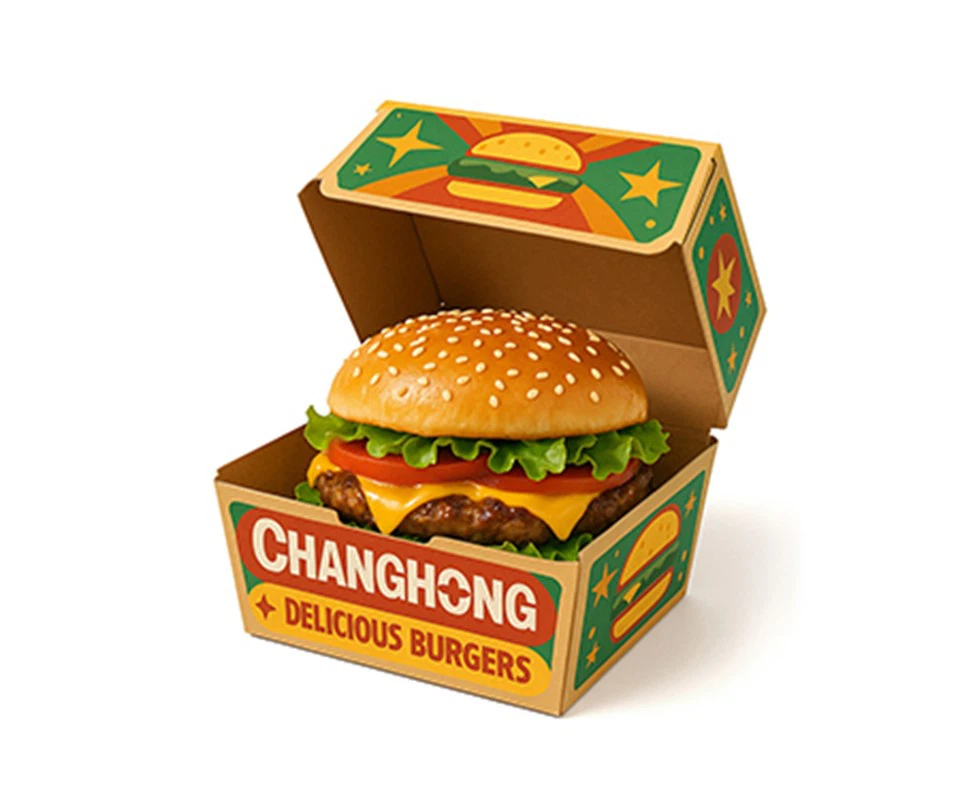

Made just for bread bags, fast food containers and food paper packaging, and it fully meets all food-grade production standards.
Recycled Paper
A go-to choice for eco-friendly, sustainable packaging. When printing with flexo, it needs steady tension control and smooth web handling.
Main Challenges in Paper Printing
- Different types of paper absorb ink differently, which often makes the colors look inconsistent.
- When printing at high speeds, paper tends to stretch and the web can go off track.
- The fiber structure of paper affects how accurate the printing registration can be.
- Lightweight paper is more prone to wrinkling or tearing during the printing process.
- Thick paper needs more precise tension control when unwinding and rewinding.
- The drying speed of water-based ink is a bottleneck for overall production efficiency.
Advantages of Changhong Paper Flexo Printing Solutions
High-Precision Tension Control System
It keeps the web moving stably during high-speed printing, which helps cut down on material stretching and registration deviation.
Stable Registration Control
It makes multi-color printing more accurate, so it can meet the requirements of high-quality packaging production.
Compatible with Water-Based Ink Printing
It works well with eco-friendly water-based inks, aligning with the growing shift toward sustainable packaging.
High-Efficiency Drying System
It speeds up ink drying on paper, reducing issues like ink blocking and smearing.
Wide Material Compatibility
It works with various paper weights, surface structures used in packaging production.
High-Speed Stable Production
It is designed for large-volume packaging production, helping improve overall operational efficiency.
Model Comparison
|
Machine Type |
Core Advantages |
Typical Applications |
|
Gearless Flexo Printing Machine |
Independent servo drive, stable registration, fast job changes |
High-quality printing for art paper, high-grammage kraft paper, and various premium packaging materials. |
|
Central Drum Flexo Printing Machine |
High registration accuracy, stable high-speed printing |
Large-scale, long-run orders such as food bags, cartons, and paper cups. |
|
Stack Type Flexographic Printing Press |
Compact structure, lower cost, double-sided printing |
Small-to-medium batch production for conventional food bags and boxes. |
|
Inline Flexo Printing Machine |
Flexible configuration, supports inline converting units |
Shopping bags, gift packaging, and various paper packaging requiring inline converting/lamination processes. |
Recommended Models
We recommend the following flexo printing machines for paper applications, crafted to satisfy various production demands from high-end fine printing to economical options for small and medium-scale paper product printing.

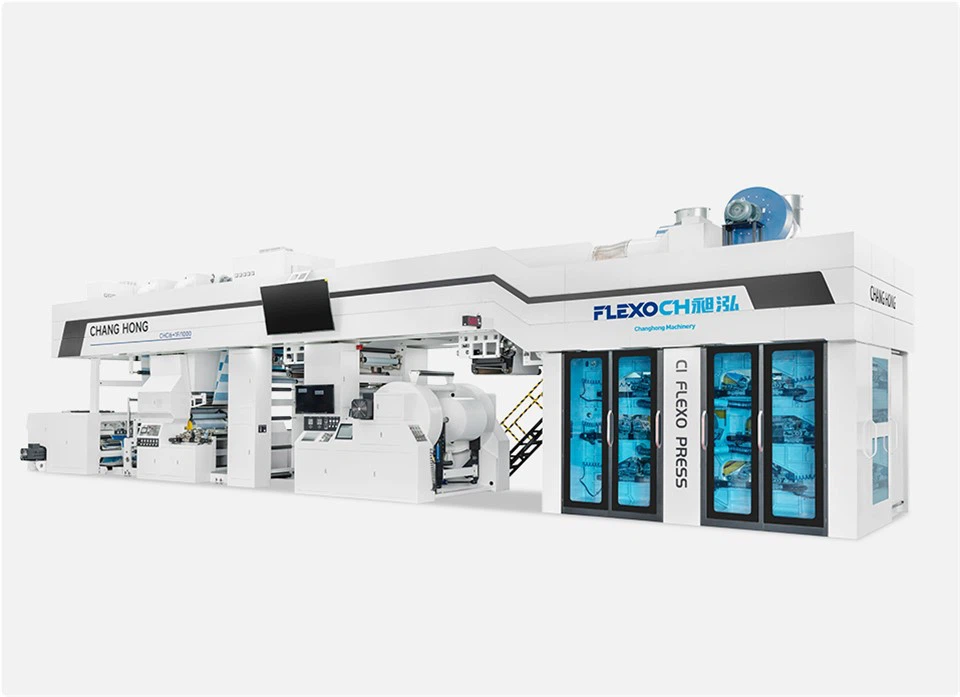

Gearless Flexo Printing Machine
Gearless flexo printing machine is developed for high-end enterprises, adopting full-servo gearless drive and sleeve technology. The real-time closed-loop tension control can effectively reduce paper stretching and wrinkling, and ensure high efficiency of job change.
- Machine speed: 500m/min
- Registration accuracy: ±0.05mm
- Color stations: 4–10 colors (customizable)
- Applicable substrates: 12-400g/m² various papers and composite paper substrates

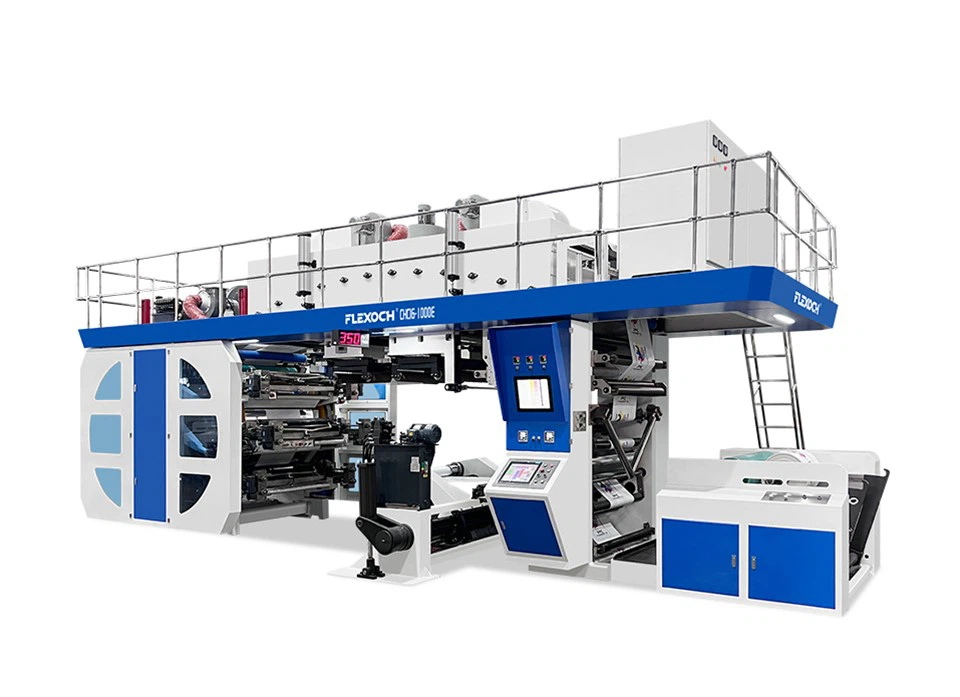

Central Drum Flexo Printing Machine
Central drum flexo printing machine is equipped with a central impression drum, which can minimize registration errors. The large-volume hot-air system ensures fast ink drying and bright colors even when printing on high-absorbency paper at high speed.
- Machine speed: 200–350m/min
- Registration accuracy: ±0.1mm(customizable)
- Color stations: 4–10 colors
- Applicable substrates: 12–200g/m² paper and paper-plastic composite materials

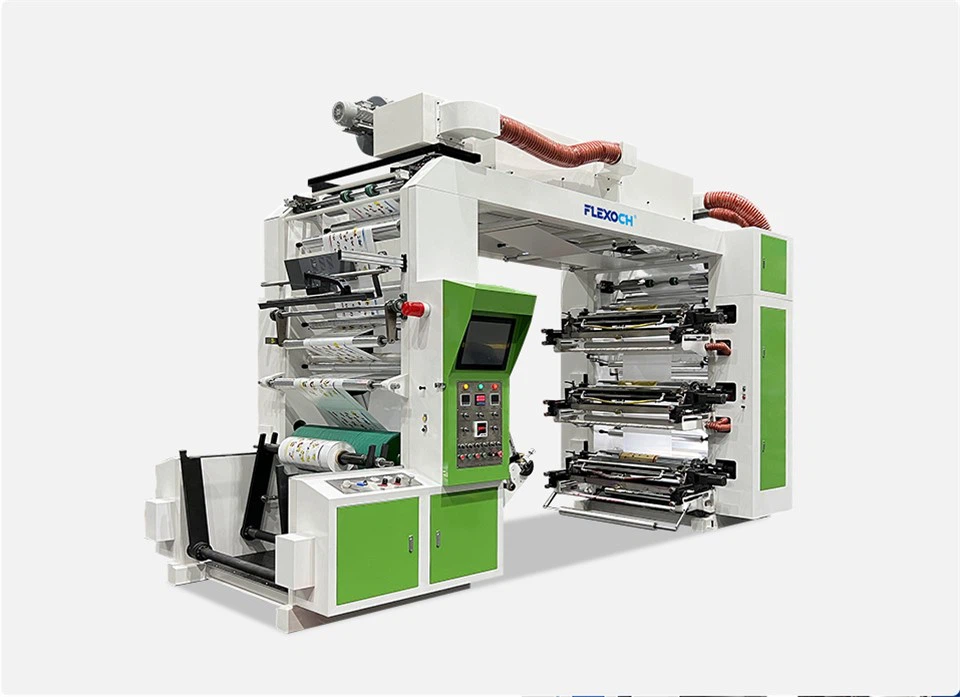

Stack Type Flexographic Printing Press
Stack type flexographic printing press focuses on economy and practicality, supports double-sided printing, and is easy to operate. The standard hot-air system can prevent ink penetration, which is very suitable for conventional paper printing.
- Machine speed: 100–120m/min
- Registration accuracy: ±0.15mm
- Color stations: 2–10 colors (customizable)
- Applicable substrates: 30–200g/m² various papers and composite paper

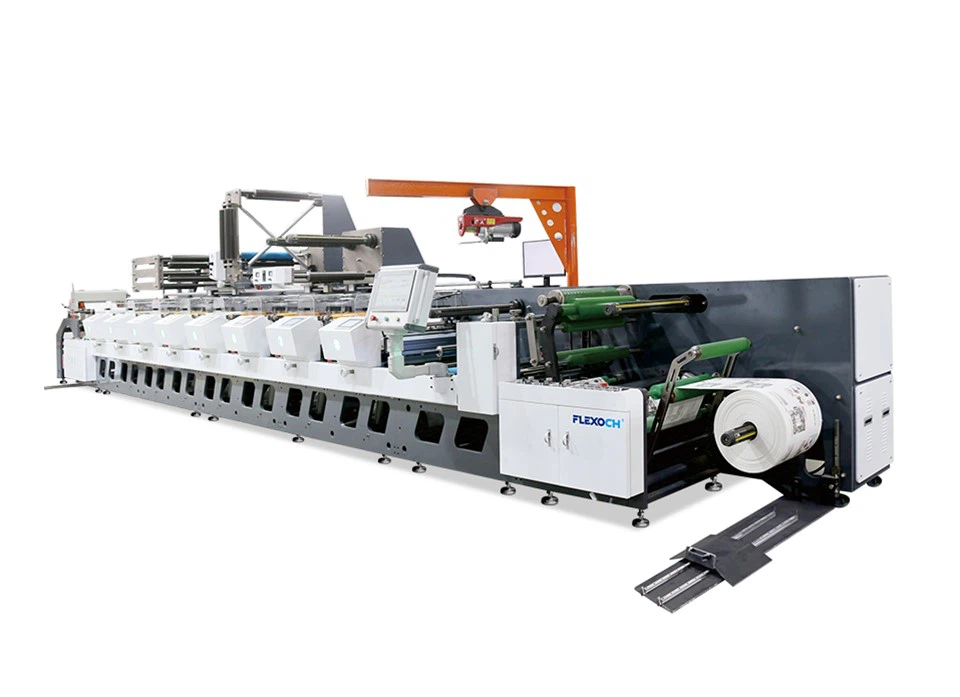

Inline Flexo Printing Machine
Inline flexo printing machine adopts a modular structure, designed for integrated production. It can complete printing and post-processing in one process, with high operational flexibility.
Machine speed: 180m/min
Registration accuracy: ±0.15mm
Color stations: 4–10 colors (customizable)
Applicable substrates: 20-200g/m² various papers and composite materials
Why Choose Changhong Paper Flexo Printing Machines
Changhong has been focusing on the R&D and manufacturing of flexo printing machines, and continuously optimizes the machine performance according to the actual needs of paper packaging printing, including tension control, registration stability, drying efficiency and high-speed production capacity. Whether it is eco-friendly paper bags, food packaging or high-quality paper printing, we can provide stable and efficient flexo printing solutions according to the different production needs of customers.
Optional Configurations for Paper Printing
According to the type of paper used, Changhong paper flexo printing machines can be equipped with different functional modules to improve printing and processing performance without changing the core production process.
- Double-sided printing: It can complete the printing of both sides of the paper in one process, with stable registration accuracy
- Shaftless feeding: It is more convenient to load the paper roll, and can better protect the edge of the paper
- Friction winding: The tension can be adjusted according to the actual situation, reducing the wrinkling of the paper during operation
- Precision slitting: The cutting edge is smoother, which effectively improves the production efficiency
