Gearless flexo printing press is a flexographic printing equipment for the production of deformable materials such as plastic films and non-woven fabrics. Adopt servo drive control, environmental protection water-based ink, low pollution. Gearless CI flexo printing press has perfect functions, low production cost and simple operation, which can meet the production needs of customers to the greatest extent.
Parameter
|
TECHNICAL SPECIFICATIONS |
||||
|
Model |
CHCI6-600F-S |
CHCI6-800F-S |
CHCI6-1000F-S |
CHCI6-1200F-S |
|
Max. Web Width |
650mm |
850mm |
1050mm |
1250mm |
|
Max. Printing Width |
600mm |
800mm |
1000mm |
1200mm |
|
Max. Machine Speed |
500m/min |
|||
|
Max.Printing Speed |
450m/min |
|||
|
Max. Unwind/Rewind Dia. |
Φ800mm/Φ1200mm |
|||
|
Drive Type |
Gearless full servo drive |
|||
|
Photopolymer Plate |
To be specified |
|||
|
Ink |
Water base ink or solvent ink |
|||
|
Printing Length (repeat) |
400mm-800mm |
|||
|
Range Of Substrates |
LDPE, LLDPE, HDPE, BOPP, CPP, PET, Nylon, Breathable Film | |||
|
Electrical Supply |
Voltage 380V. 50 HZ.3PH or to be specified |
|||
Video Introduction
The following is the video introduction of Gearless flexo printing press unwinding and winding.
Performance Characteristics
1. Gearless flexo printing press the center embossing roller adopts double-wall constant temperature cooling cycle design.
2. Using extra-thick rack wall panel printing station to work stably.
3. New independent drying design between colors, better drying effect.
4. Using quick-replaceable sleeve type rolls and anilox rolls.
5. Pressure of plate roll and anilox roll are controlled by servo motor, easy to operate.
6. Install the automatic overprinting system with pre-overprinting function, which can be printed when the machine is turned on, saving costs.

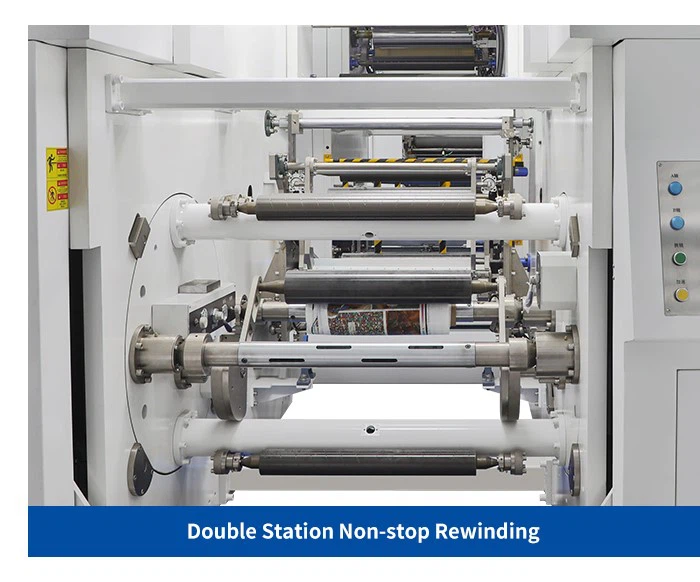

7. Equipped with automatic rewinding and unwinding function without stopping to promote production and reduce waste.
8. Equipped with an embracing multi-electrode coron.
Detail Image
Application Field
Flexographic printing equipment Suitable for flexible packaging, paper boxes, paper cups and hard packaging, such as food packaging paper, non-woven fabrics, disposable medical supplies packaging bags, paper boxes, paper cups, etc
