The stack flexo printing machine prints by the method of transferring ink from an anilox roller, which is a type of letterpress printing process, referred to as flexo printing. The graphic part of the flexographic printing plate is raised, and the anilox roller evenly coats the ink layer of a certain thickness on the graphic part of the printing plate during printing, and then under the action of the pressure of the embossing roller, the ink layer of the graphic part is Transfer to the surface of the substrate to form a clear graphic. The inking mechanism of a flexographic printing press is usually a two-roller inking mechanism. Among stack flexo printing machines, 8 colour flexo printing machines are more popular.
Parameter
|
TECHNICAL SPECIFICATIONS |
||||
|
Model |
CH8-600B-S |
CH8-800B-S |
CH8-1000B-S |
CH8-1200B-S |
|
Max. Web Width |
650mm |
850mm |
1050mm |
1250mm |
|
Max. Printing Width |
560mm |
760mm |
960mm |
1160mm |
|
Max. Machine Speed |
120m/min |
|||
|
Max. Printing Speed |
100m/min |
|||
|
Max. Unwind/Rewind Dia. |
Φ600mm |
|||
|
Drive Type |
Synchronous belt drive |
|||
|
Photopolymer Plate |
To be specified |
|||
|
Ink |
Water base ink or solvent ink |
|||
|
Printing Length (repeat) |
300mm-1300mm |
|||
|
Range Of Substrates |
LDPE, LLDPE, HDPE, BOPP, CPP, PET, Nylon, |
|||
|
Electrical Supply |
Voltage 380V. 50 HZ.3PH or to be specified |
|||
Video Introduction
Following is the workflow of Stack type flexo printing machine 8 colour flexo printing machine
Advantage
1. When the stack flexo printing machine is printing, its paper path can be changed, its printing can print the front and back at the same time, and its printing color number is very convenient to change.
2. The printed parts are very good and convenient for our operation, like our adjustment, replacement and cleaning are relatively convenient.
3. The printing unit can be separated and meshed independently, and it can also perform 360 registration, which will facilitate the printing of other printing units.
4. It has a wide range of applications and can print various publications.

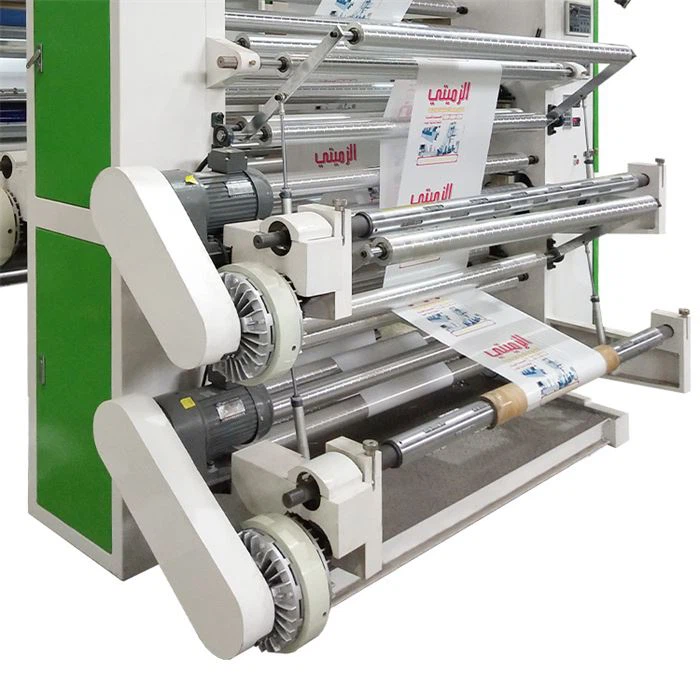

Detail Image
Printing Sample
8 colour flexo printing machine is suitable for printing various materials such as non-woven fabrics, paper, bopp/ pe/ pet/shrink film, etc.
Our Certificate
Our products have passed ISO9001 international quality system certification and EU CE safety certification, etc.
Packaging and Delivery
Why choose us?
- We use a rigorous testing process to ensure every product meets our quality standards before leaving our factory.
- For the specific requirements of different customers, our team is able to fully meet the customer's product needs and manufacturing process, so as to tailor specific for customers.
- We offer flexible pricing options to meet the budgetary needs of our clients.
- We take the promotion of the development of the domestic 8 Colour Flexo Printing Machine industry as our responsibility and strive towards the goal of being a leader in 8 Colour Flexo Printing Machine industry.
- Our machines are designed to be easy to maintain and require minimal downtime for servicing.
- In order to continue to develop in the future, we will pass on the corporate beliefs of 'people-oriented', such as meritocracy and health first doctrine from generation to generation.
- Our products are designed to withstand the test of time and deliver consistent performance.
- We always adhere to the high standards and strict requirements of product quality, in accordance with the enterprise principle of survival by price and development by quality.
- We offer customized solutions tailored to meet the unique needs of our clients.
- Our company insists on the product development strategy of "distinctive personality, high quality and low price" and the marketing strategy of "technical marketing and professional service".
