6 Colour Flexo Printing Machine

Model: CH-B-Z Series
Machine Seed :120m/min
Number Of Printing Decks:4/6/8/10
Drive Method:Synchronous belt drive
Heat Source:Gas, Steam, Hot oil, Electrical heating
Electrical Supply: Voltage 380M 50 HZ.3PH or to be specified
Main Processed Materials:Films,Paper,Paper cup,Non-Woven
Send Inquiry
Chat Now

Product Introduction

Wenzhou Changhong Printing Machinery Co., Ltd. is one of the leading manufacturers and suppliers of 6 colour flexo printing machine in China. Welcome to buy cheap 6 colour flexo printing machine for sale here from our factory. Quality products and reasonable price are available.



The stack flexo printing machine can use soft polymer resin plates, which not only reduces the cost of plate-making and shortens the plate-making cycle, the anilox roller has now reached the level of the line, which is enough to meet the General packaging and printing needs. 6 colour flexo printing machine can print various materials such as non-woven fabrics, paper, various films, etc.

product-800-600

Parameter

TECHNICAL SPECIFICATIONS

Model

CH6-600B-Z

CH6-800B-Z

CH6-1000B-Z

CH6-1200B-Z

Max. Web Width

650mm

850mm

1050mm

1250mm

Max. Printing Width

560mm

760mm

960mm

1160mm

Max. Machine Speed

120m/min

Max. Printing Speed

100m/min

Max. Unwind/Rewind Dia.

Φ1200mm/1500mm

Drive Type

Synchronous belt drive

Photopolymer Plate

To be specified

Ink

Water base ink or solvent ink

Printing Length (repeat)

300mm-1300mm

Range Of Substrates

Paper,Non Woven,Paper Cup

Electrical Supply

Voltage 380V. 50 HZ.3PH or to be specified



Video Introduction



Performance Characteristics

1. Stack type flexo printing machine can perform single-color and multi-color printing. For the printing machine, double-sided printing can also be realized by changing the conveying route of the substrate and by means of a reversing roller.

2. The printing materials can be widely available in kraft paper, sheet-fed materials, or in the form of rolls,  The viscosity of the stack flexo press printing material must be accurately measured with a viscosity cup.

3. The distance between each imprinting unit of the short-distance arrangement Flexographic printing machine is small, which is convenient for multi-color overprinting and can be used to print small prints of trademarks with high precision.

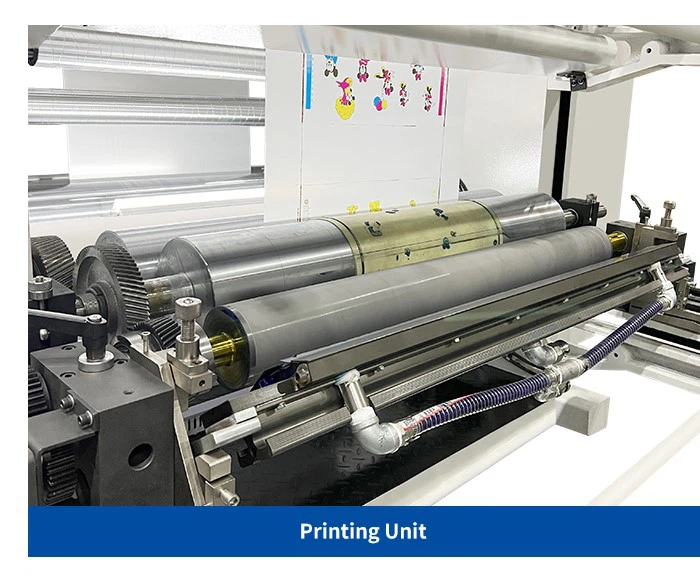

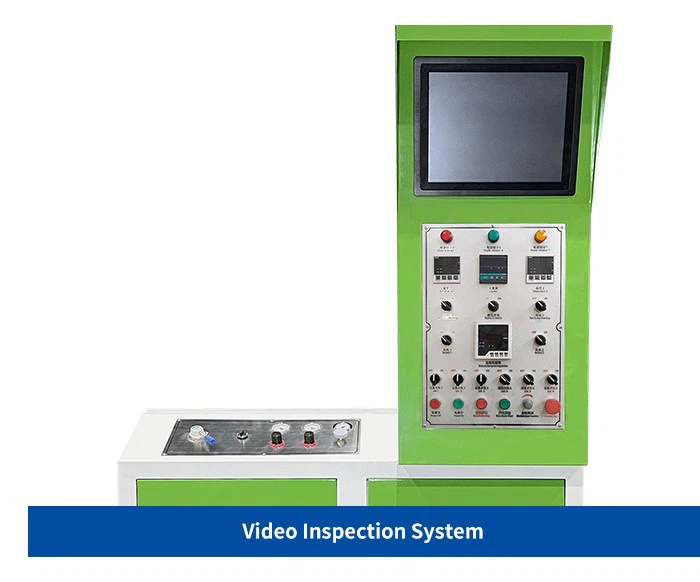

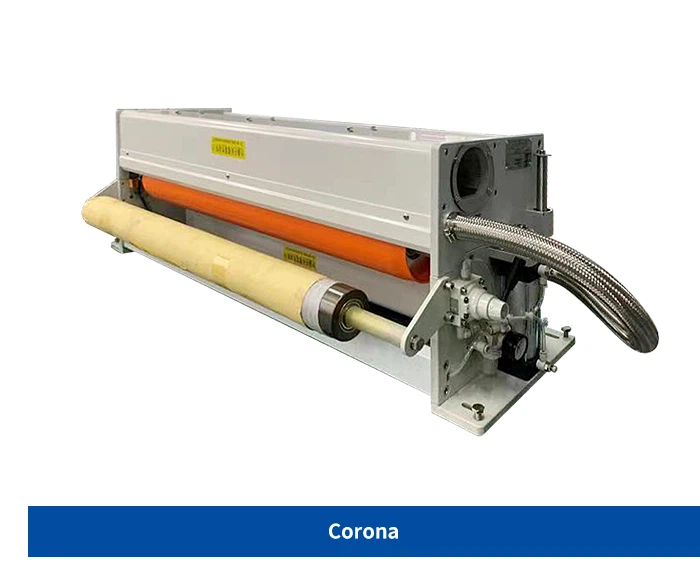

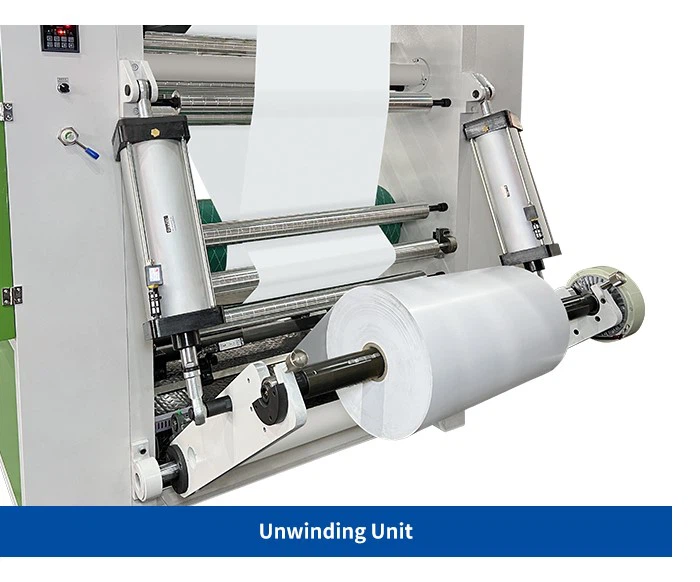

Detail Image

01
02

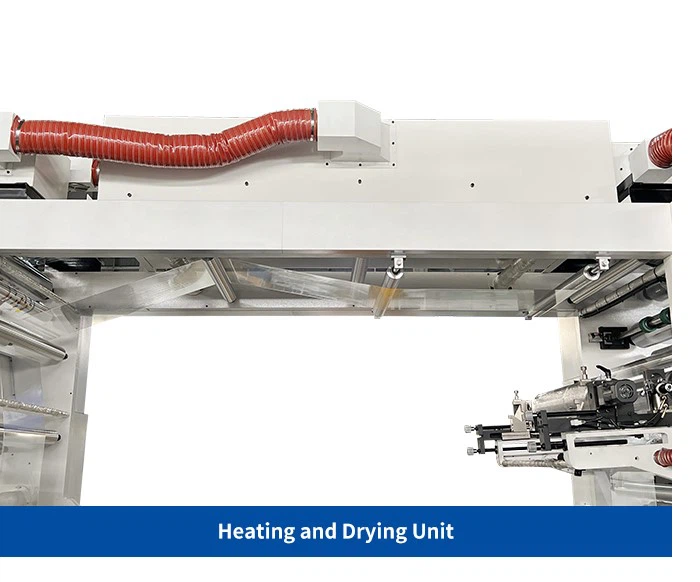

03

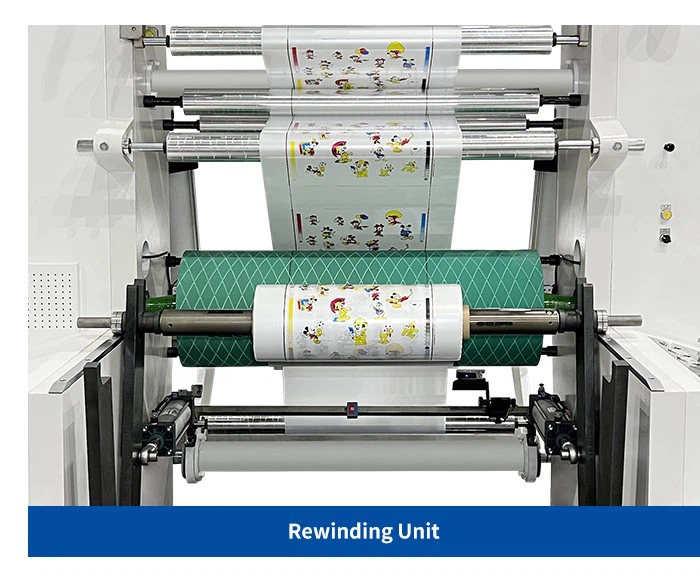

04
05
06
07
08

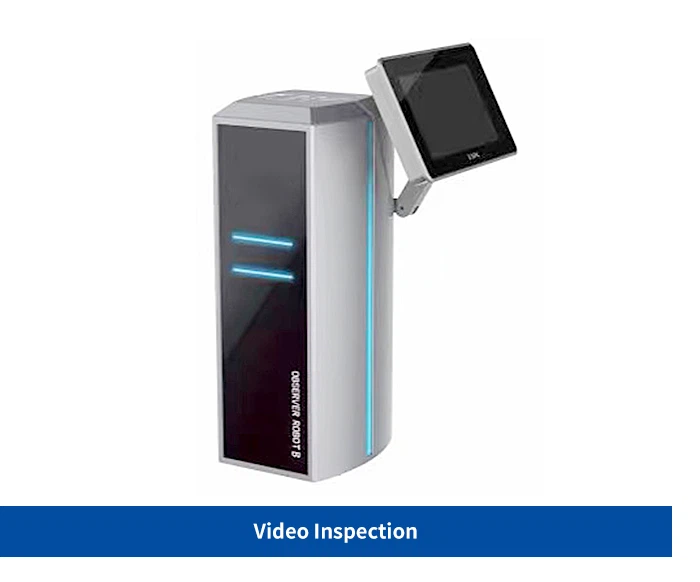

09
10

Printing Samples

01
02
03
04

05
06



Flexographic printing machine installation environment requirements

1. 6 colour flexo printing machine The workshop requires an air purification device, especially if the equipment is equipped with a drying machine, the hot air generated during curing should be removed through the pipeline in time to maintain the indoor temperature.

2. The workshop requires a basic constant temperature and an air conditioning device. Such environmental conditions are close to the material manufacturing environment, which can avoid deformation material and ensure printing quality. In addition, the above conditions can also reduce the output of static electricity, and can also improve the printing quality.



Packaging and Delivery

01



03

02



04

We are a professional Stack type flexo printing machine manufacturers in China. We can provide the best Stack type flexo printing machine for sales and competitive price. If you are looking forStack flexo press supplier, we are a good choice. Contact us to get the price of 4 colour flexo printing machine,6 colour flexo printing machine,8 colour flexo printing machine etc.
