Wenzhou Changhong Printing Machinery Co., Ltd. is one of the leading manufacturers and suppliers of 6 color ci flexo printing machine in China. Welcome to buy cheap 6 color ci flexo printing machine for sale here from our factory. Quality products and reasonable price are available.
6 Color CI Flexo Printing Machine is a printing press that uses flexography printing technique. It is capable of printing six different colors in a single pass. each with a printing plate that transfers ink onto the material being printed. The ink is applied to the plate by a roller system, and the plate makes contact with the material to transfer the ink.Flexographic printing is commonly used for packaging materials such as plastic bags, paper bags,Non Woven.
Parameter
|
TECHNICAL SPECIFICATIONS |
||||
|
Model |
CHCI8-600E-S |
CHCI8-800E-S |
CHCI8-1000E-S |
CHCI8-1200E-S |
|
Max. Web Width |
700mm |
900mm |
1100mm |
1300mm |
|
Max. Printing Width |
600mm |
800mm |
1000mm |
1200mm |
|
Max. Machine Speed |
350m/min |
|||
|
Max. Printing Speed |
300m/min |
|||
|
Max. Unwind/Rewind Dia. |
Φ800mm/Φ1000mm/Φ1200mm |
|||
|
Drive Type |
Central drum with Gear drive |
|||
|
Photopolymer Plate |
To be specified |
|||
|
Ink |
Water base ink or solvent ink |
|||
|
Printing Length (repeat) |
350mm-900mm |
|||
|
Range Of Substrates |
LDPE, LLDPE, HDPE, BOPP, CPP, PET, Nylon, |
|||
|
Electrical Supply |
Voltage 380V. 50 HZ.3PH or to be specified |
|||
Video Introduction
The following are 6 Color CI Flexo Printing Machine operation steps. Prepress - Ink preparation and feeding - Printing - Drying - Finishing
Machine Features
1. High efficiency: flexo printing machine 6 color can print six colors in a single pass, which increases the printing speed and reduces production time.
2. Cost-effective: By printing multiple colors in one pass, a 6 color CI flexo printing machine reduces ink consumption and waste.

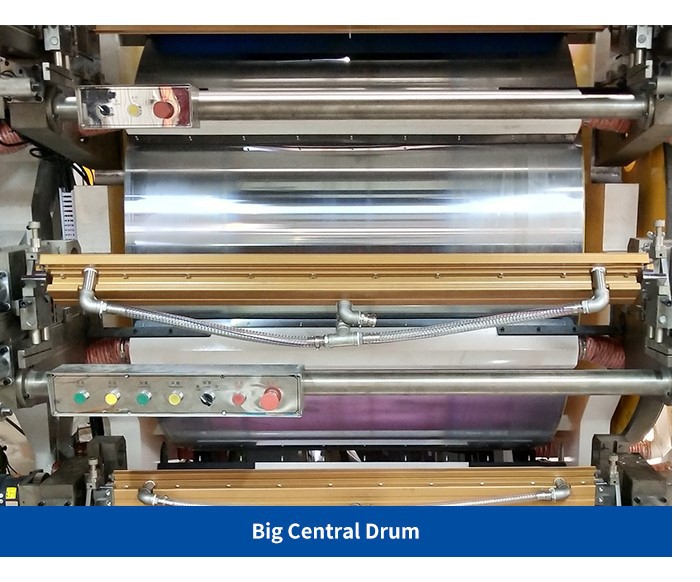

3. Consistent printing quality: The use of a CI (Central Impression) drum ensures uniform inking and printing, resulting in consistent print quality throughout the printing process.
4. Versatility: CI flexo printing machine can print on a wide range of materials, including paper, film, and foil.
5.Quality: Flexographic printing machines produce high-quality prints with sharp images and vivid colors. This is achieved through their ability to print at high resolutions and use advanced printing techniques such as halftone printing.
Detail Image
Printing samples
FAQ
Q1: How is a flexographic printing plate made?
A1: A flexographic printing plate is typically made by laser engraving the desired image onto a flexible rubber or photopolymer plate. The plate is then mounted onto the printing press and ink is transferred onto the substrate through the raised areas of the plate.
Q2: What factors affect the quality of flexographic printing?
A2: There are several factors that can affect the quality of flexographic printing, including the selection of ink, substrate, and printing plate, as well as the printing press set-up and the skill of the operator.
Q3: What are the disadvantages of flexographic printing?
A3: Some of the disadvantages of flexographic printing include high set-up costs, and limitations in image resolution and color accuracy.
