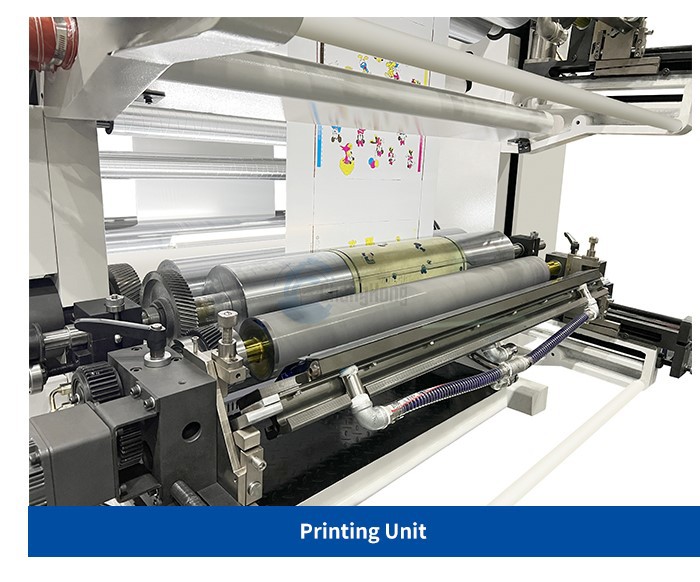

Chang Hong Stack type Plastic bag flexo printing machine is a machine that assembles multiple powerful printing units in a layer-by-layer combination. Each printing unit has its own corresponding printing cylinder, which occupies a small area.
Parameter
|
TECHNICAL SPECIFICATIONS |
||||
|
Model |
CH4-600B-S |
CH4-800B-S |
CH4-1000B-S |
CH4-1200B-S |
|
Max. Web Width |
650mm |
850mm |
1050mm |
1250mm |
|
Max. Printing Width |
560mm |
760mm |
960mm |
1160mm |
|
Max. Machine Speed |
120m/min |
|||
|
Max. Printing Speed |
100m/min |
|||
|
Max. Unwind/Rewind Dia. |
Φ800mm |
|||
|
Drive Type |
Synchronous belt drive |
|||
|
Photopolymer Plate |
To be specified |
|||
|
Ink |
Water base ink or solvent ink |
|||
|
Printing Length (repeat) |
300mm-1300mm |
|||
|
Range Of Substrates |
LDPE, LLDPE, HDPE, BOPP, CPP, PET, Nylon, |
|||
|
Electrical Supply |
Voltage 380V. 50 HZ.3PH or to be specified |
|||
Video Introduction

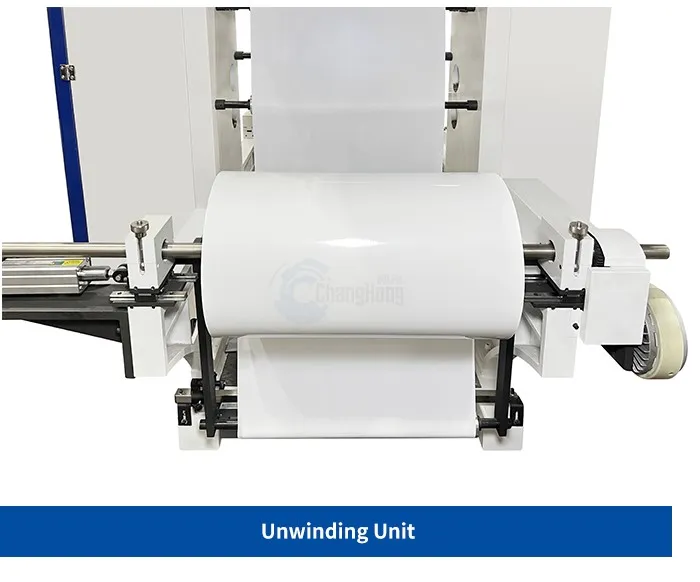

The following is an introduction to the workflow of unwinding and winding of Plastic bag flexo printing machine.
Detail Image

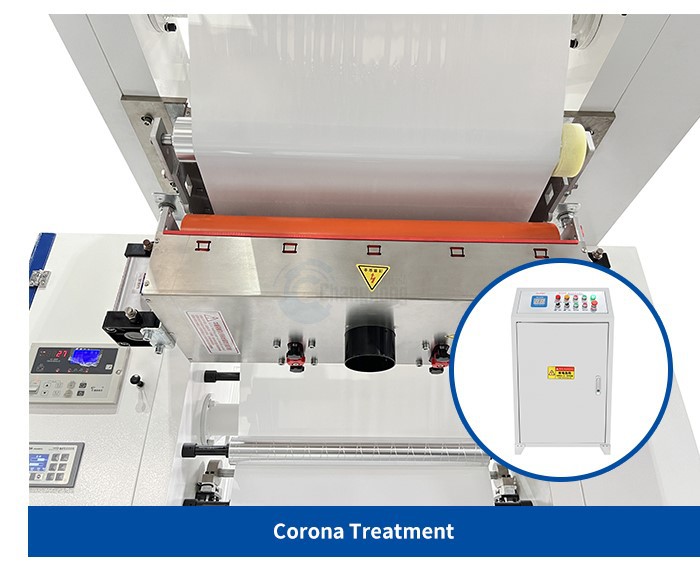

Why do plastic films need antistatic treatment during printing?
Plastic film printing machine processing and printing process are prone to electrostatic accumulation, and most films have a resistance of more than 1015Ω, and the insulation is very good, and the generated charges cannot be lost through conduction. If the electrostatic charge is not eliminated, the ink layer will be dry and impermeable, and the printed product will be easy to stick after rewinding, resulting in waste products.
Printing Sample
Plastic bag flexo printing machine can print various plastic bag materials such as PE Bopp etc.
Our Certificate
Our products have passed ISO9001 international quality system certification and EU CE safety certification, etc.
Packaging and Delivery
Why choose us?
- We take pride in the durability of our products, ensuring our clients get the best possible value for their investment.
- We always focus on the design and production of Plastic Bag Flexo Printing Machine, with the ultimate design, ultimate craftsmanship, and ultimate quality and ultimate service, we are committed to creating satisfactory products for consumers.
- Our machines are suitable for a wide range of industries, including food and beverage, pharmaceuticals, and more.
- We strive to help our customers reach their goals moving forward and become a trusted partner.
- Our machines are suitable for a wide range of materials and substrates, making them versatile and flexible.
- With the principle of comprehensive customer orientation, we are constantly improving and surpassing ourselves in this Plastic Bag Flexo Printing Machine industry field.
- We provide excellent customer service, ensuring our clients receive the best possible care and attention.
- Our employees have a positive service attitude and strong R&D and expansion capabilities.
- Our machines offer excellent repeatability, ensuring consistency in the printing process.
- We promote multi-channel publicity effect to enhance the brand communication power and maintain the corporate image and reputation.
