Wenzhou Changhong Printing Machinery Co., Ltd. is one of the leading manufacturers and suppliers of stack press in China. Welcome to buy cheap stack press for sale here from our factory. Quality products and reasonable price are available.
This high-performance stack press is designed for efficient and high-quality material printing. Its unique dual-unwinding and dual-rewinding structure significantly enhances production efficiency while reducing material waste. The machine operates stably with precise registration, effortlessly handling various complex patterns and continuous printing tasks. It is an ideal choice for achieving automated and intelligent production in the flexible packaging printing industry.
Parameter
|
TECHNICAL SPECIFICATIONS |
||||
|
Model |
CH8-600B-S |
CH8-800B-S |
CH8-1000B-S |
CH8-1200B-S |
|
Max. Web Width |
650mm |
850mm |
1050mm |
1250mm |
|
Max. Printing Width |
560mm |
760mm |
960mm |
1160mm |
|
Max. Machine Speed |
120m/min |
|||
|
Max. Printing Speed |
100m/min |
|||
|
Max. Unwind/Rewind Dia. |
Φ600mm |
|||
|
Drive Type |
Synchronous belt drive |
|||
|
Photopolymer Plate |
To be specified |
|||
|
Ink |
Water base ink or solvent ink |
|||
|
Printing Length (repeat) |
300mm-1300mm |
|||
|
Range Of Substrates |
LDPE, LLDPE, HDPE, BOPP, CPP, PET, Nylon, |
|||
|
Electrical Supply |
Voltage 380V. 50 HZ.3PH or to be specified |
|||
Video Introduction
The following is the workflow of stack press.
Machine Features
1. Efficient and Stable Production Performance
The stack press features a unique dual-unwind and dual-rewind design, enabling efficient and continuous production. Its stable mechanical structure ensures smooth operation, effectively improving overall production efficiency and capacity, and meeting tight deadlines for large-volume orders.
2. Excellent Print Quality and Flexibility
Stack press with an eight-color printing unit, the laminator enables complex, colorful, and high-precision overprinting, resulting in vibrant, saturated colors with high fidelity. The modular, laminated design provides exceptional flexibility, enabling it to process a wide range of film materials while facilitating future expansion and process adjustments to meet diverse market demands.
3. Advanced Automation and Control Technology
Integrated with a fully automatic tension control system, pre-registration system, and intelligent human-machine interface, it significantly reduces operational complexity and the need for skilled labor. Precise digital control ensures accuracy at every step, from unwinding, printing, to rewinding, ensuring consistent and stable product quality.
4. Energy-Saving, Environmentally Friendly, and User-Friendly
The stack type flexo printing machine prioritizes environmentally friendly production, effectively reducing energy consumption. At the same time, its design takes into account the convenience of operation and maintenance. Some units adopt a quick-change structure, which makes cleaning and plate changing more time-saving and labor-saving, thereby reducing operating costs and improving user experience.

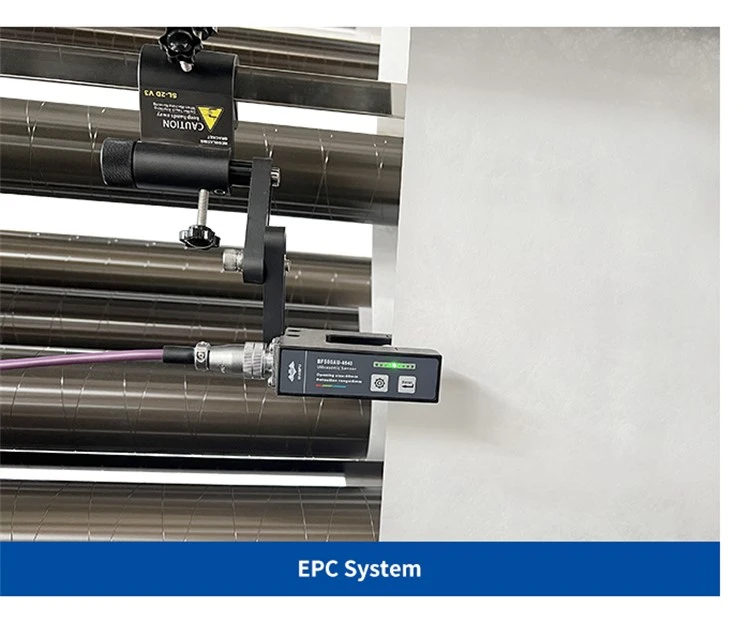

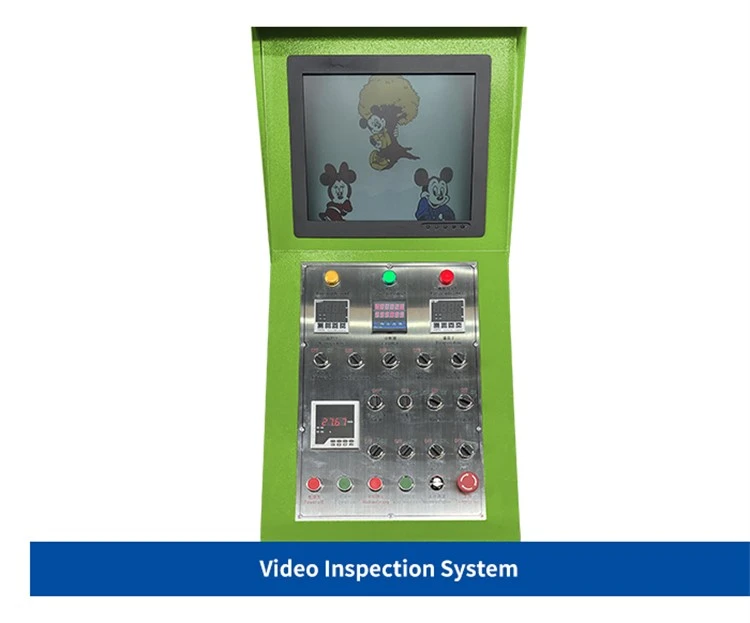

Detail Image
Printing Samples
Stack press is a roll-to-roll wide web flexible packaging printer. This printer utilizes Flexo and Stack technology which ensures quality and maximum production speed. This printer allows you to print on substrates such as: paper, plastic films.
Packaging and Delivery
