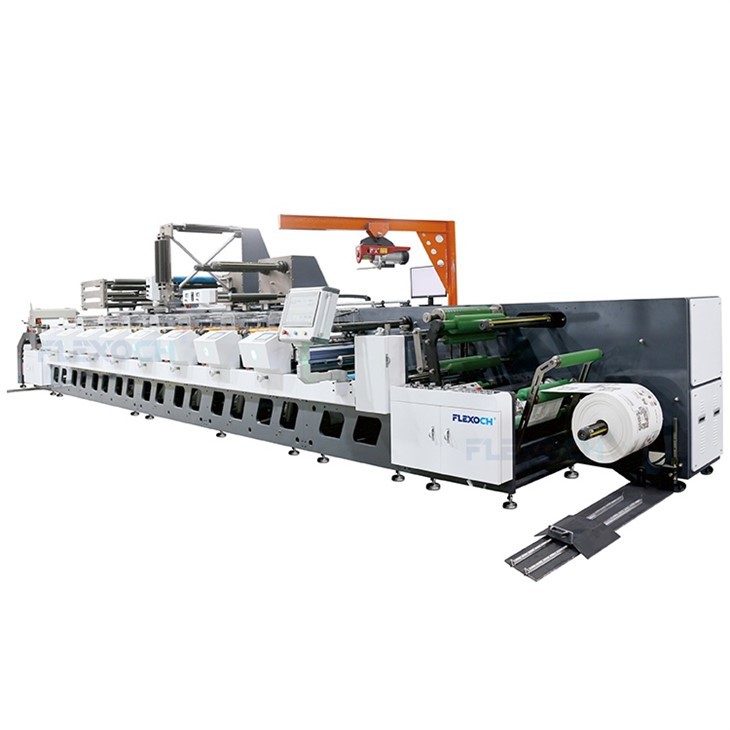

The inline flexo Printing machine serves as professional printing equipment, with its core utilizing flexible photopolymer or rubber plates and anilox rollers to achieve precise ink transfer. It delivers exceptional printing performance-particularly on paper and non-woven fabrics, producing vivid, high-definition prints-and integrates functions such as printing and varnishing. With stable operation and high efficiency, it fully meets the requirements for high-quality and environmentally friendly printing.
Parameter
|
CH6-1200A Series (Printing material: PAPER)-6 color |
|
|
Model |
CH6-1200A |
|
Maximum winding and unwinding diameter |
ф1524 |
|
Inner diameter of paper core |
3″ OR 6″ |
|
Maximum paper width |
1220MM |
|
Repeat length of printing plate |
380-1200mm |
|
Plate thickness |
1.7mm or to be specified |
|
Thickness of plate mounting tape |
0.38mm or to be specified |
|
Registration accuracy |
±0.12mm |
|
Printing paper weight |
40-140g/m2 |
|
Tension control range |
10-50kg |
|
Maximum printing speed |
100m/min |
|
Maximum machine speed |
150m/min |
Video Introduction
The following is the printing process of In line flexo printing machine unwinding and rewinding
Machine Feature
1. Great Print Quality:Its precision anilox roller ink system is tuned to paper and non-woven fabrics, ensuring even ink, accurate registration, and sharp prints-ideal for paper boxes and bags.
2. Wide Material Compatibility:The inline flexo Printing machine works well with paper, cardstock, non-wovens, films, and aluminum foil. With adjustable impression rollers and tension control, it cuts material waste-great for eco-friendly paper bags and medical non-wovens.
3. Eco-Friendly & Cost-Saving:It comes with water-based/UV eco-inks and a closed doctor blade system, reducing solvents and VOCs. Optimized energy use meets green standards and cuts long-term production costs.
4. High Inline Efficiency:The inline flexographic printing Machine supports inline finishing (varnishing, hot stamping, die-cutting) and has a modular design. Quick plate changes let you switch batches fast, shortening production cycles.
5. Durable & Easy to Maintain:Made of steel, it stays stable even at high speeds. Its modular design makes daily maintenance and part replacement easy, cutting downtime and long-term upkeep costs.
Detail Image
1. The inline flexo printing machine adopts taper tension control technology to ensure overprint accuracy
2. Double rubber rollers press and feed paper, and the pressure adjustment is controlled by pneumatic components.

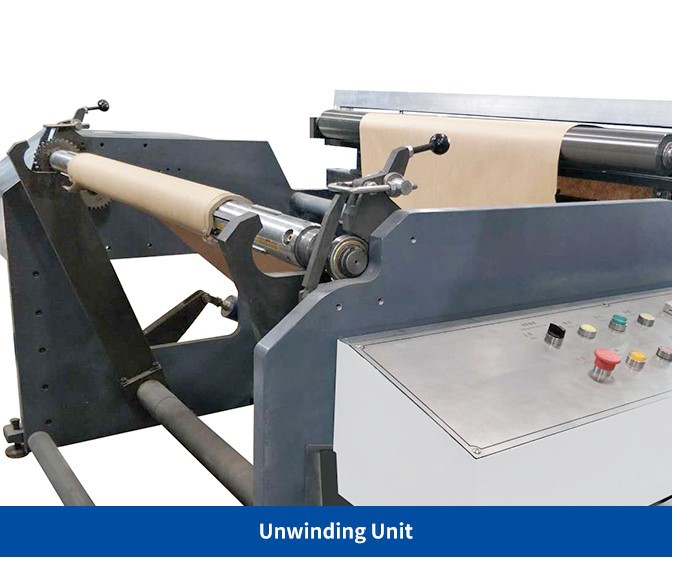

3. The unwinding traction unit adopts integral alloy cast iron double wall panels.
4. EPC system: can automatically correct the paper position; detection method: edge detection.
5. The printing unit adopts an integral alloy cast iron double wall panel and a 45-degree helical gear transmission structure; Drive method: Gear Drive.

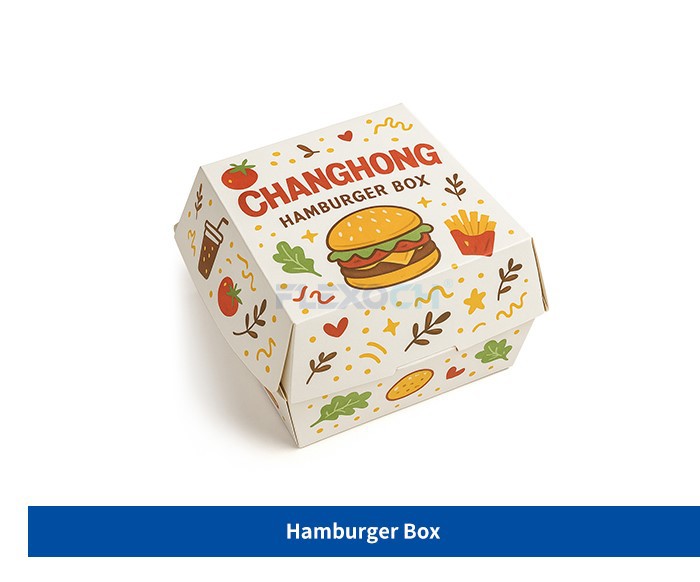

Printing Sample
