All printed units of the ci flexo machine share a central impression cylinder. The overprinting accuracy of the printed matter is high, and the multi-color printing can be completed in one pass on the impression cylinder. Suitable for paper, aluminum foil, plastic film, non-woven fabric and other materials.
Parameter
|
Model |
CHCI6-600J-S |
CHCI6-800J-S |
CHCI6-1000J-S |
CHCI6-1200J-S |
|
Max. Web Width |
650mm |
850mm |
1050mm |
1250mm |
|
Max. Printing Width |
600mm |
800mm |
1000mm |
1200mm |
|
Max. Mechanical Speed |
250m/min |
|||
|
Max. Printing Speed |
200m/min |
|||
|
Max. Unwind/Rewind Dia. |
Φ800mm/Φ1000mm/Φ1200mm |
|||
|
Drive Type |
Central drum with Gear drive |
|||
|
Photopolymer Plate |
To be specified |
|||
|
Ink |
Water base ink or solvent ink |
|||
|
Printing Length (repeat) |
350mm-900mm |
|||
|
Range Of Substrates |
LDPE, LLDPE, HDPE, BOPP, CPP, PET, Nylon, |
|||
|
Electrical Supply |
Voltage 380V. 50 HZ.3PH or to be specified |
|||
Video Introduction
Machine Features
1. ci flexo machine automatic non-stop loading and unloading, the non-stop feeding speed can reach 200 m/min;
2.The whole machine adopts PC and variable frequency drive control system.
3.Fully automatic computer automatic color registration, high-definition color still picture monitoring.

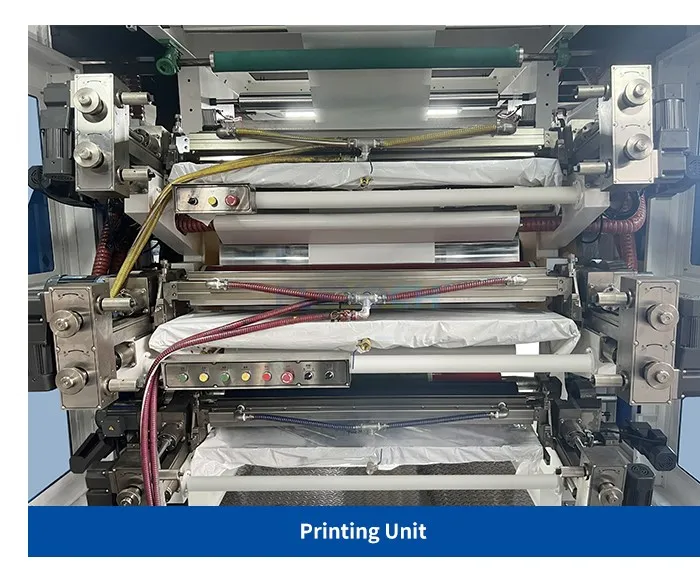

4.High-precision ceramic anilox roller inking system, fully enclosed doctor blade scraping ink.
5.High-performance correction system to ensure the linear stability of the substrate running process and the end face uniformity of the finished winding product

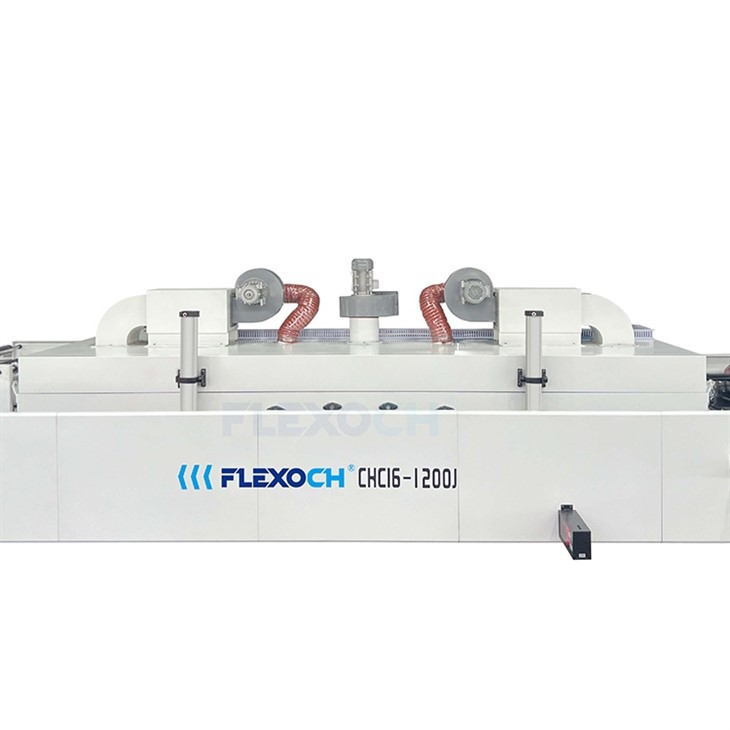

6.Independent hot air electric heating drying unit, can also choose heat conduction oil or steam heating method.
Application Field
