Servo Stack Flexo Printing Machine

MODEL:CH-S-S Series
Machine Speed:200m/min
Number Of Printing Decks:4/6/8/10
Drive Method:Servo drive
Heat Source:Gas, Steam, Hot oil, Electrical heating
Electrical Supply:Voltage 380V. 50 HZ.3PH or to be specified
Main Processed Materials:Films;FFS; Paper; Non-Woven; Aluminium foil
Send Inquiry
Chat Now

Product Introduction

The Servo stack flexo printing machine is easy to use and intuitive, making it ideal for anyone looking to take their print production to the next level. In addition, it features a variety of advanced and state-of-the-art features, including electronic registration adjustments, ink management and web tension control, which help ensure unparalleled print accuracy and quality.

Servo stack flexo printing machine





Paramet

Model

CH8-600S-S

CH8-800S-S

CH8-1000S-S

CH8-1200S-S

Max. Web Width

650mm

850mm

1050mm

1250mm

Max. Printing Width

600mm

800mm

1000mm

1200mm

Max. Machine Speed

200m/min

Max. Printing Speed

150m/min

Max. Unwind/Rewind Dia.

Φ800mm

Drive Type

Servo drive

Photopolymer Plate

To be specified

Ink

Water base ink or solvent ink

Printing Length (repeat)

350mm-1000mm

Range Of Substrates

LDPE, LLDPE, HDPE, BOPP, CPP, PET, Nylon,

Electrical Supply

Voltage 380V. 50 HZ.3PH or to be specified





Machine features

1. Improved print accuracy: The Servo stack flexo printing machine offers much higher print accuracy than older machines. This means that label and packaging designs can be much more detailed and of higher quality.



2. Increased production speed: The servo stacking printing machine is capable of producing many more packages and labels in a shorter period of time than older machines. This means that manufacturers and packagers can produce products more quickly and more efficiently.



3. Reduced waste and costs: The accuracy of the Servo stack flexo printing machine means that less waste of packaging material and labels is produced. In addition, the machine is also more efficient in terms of the use of materials.



4. Greater Flexibility: The Servo stack Flexographic Printing Machine can handle various types of packaging materials and labels, meaning it can be used for a variety of applications. This also means that a large amount of separate equipment is not needed to produce different products.



5. Easy to Use: The Servo stack Flexographic Printing Machine is very easy to operate and requires little maintenance. Operators can set up the machine for different applications easily and quickly.

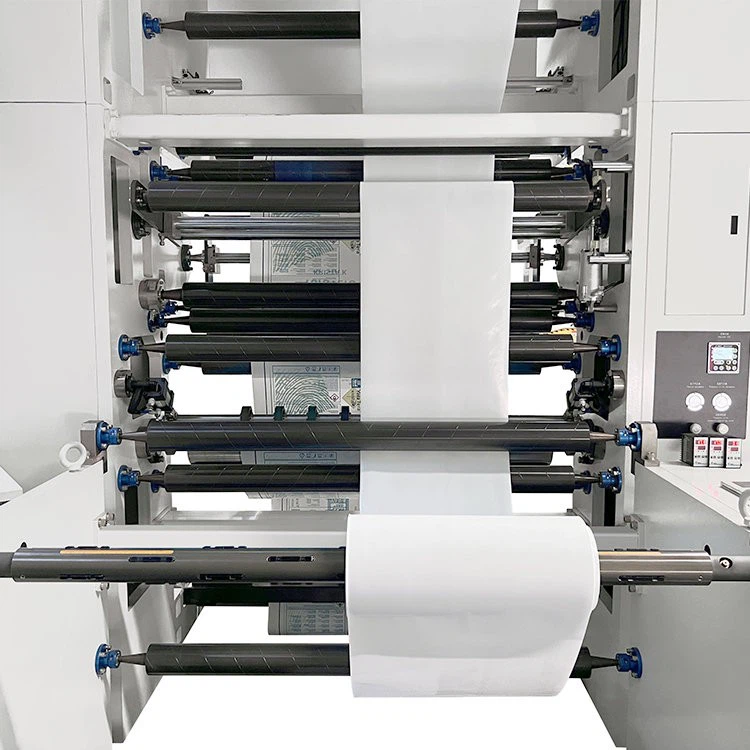

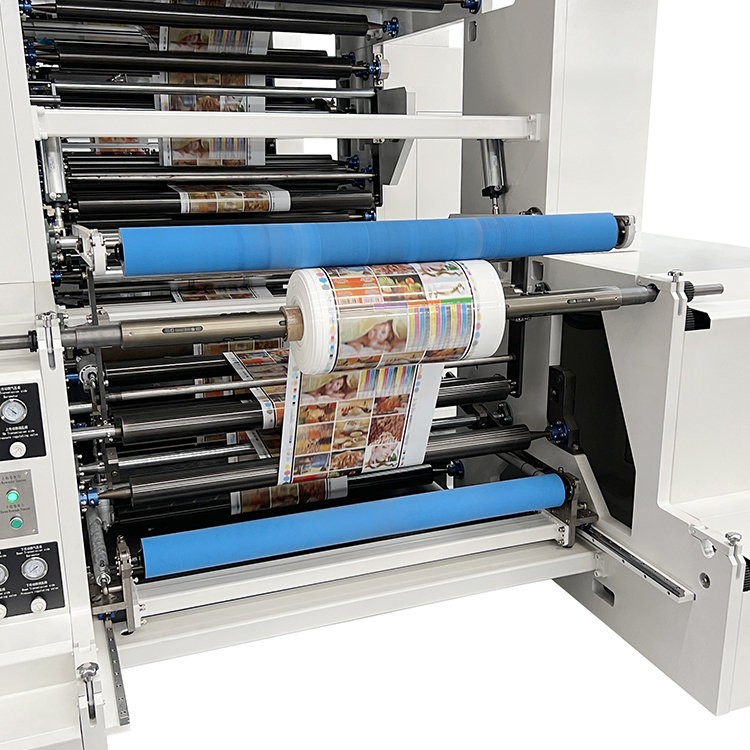

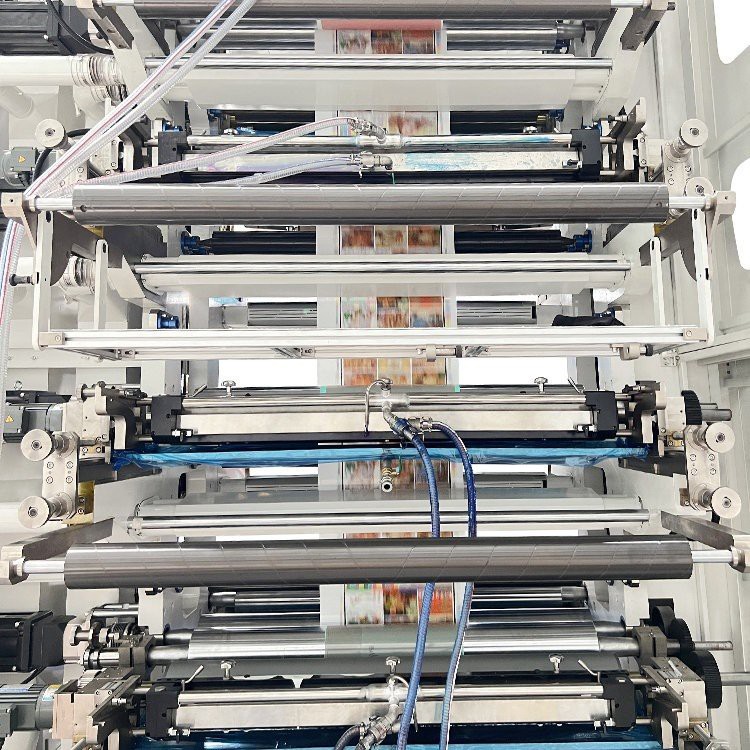

Detail Image

01
02
03
04
05
06
Printing Sample
01
02
03



05



04



06
